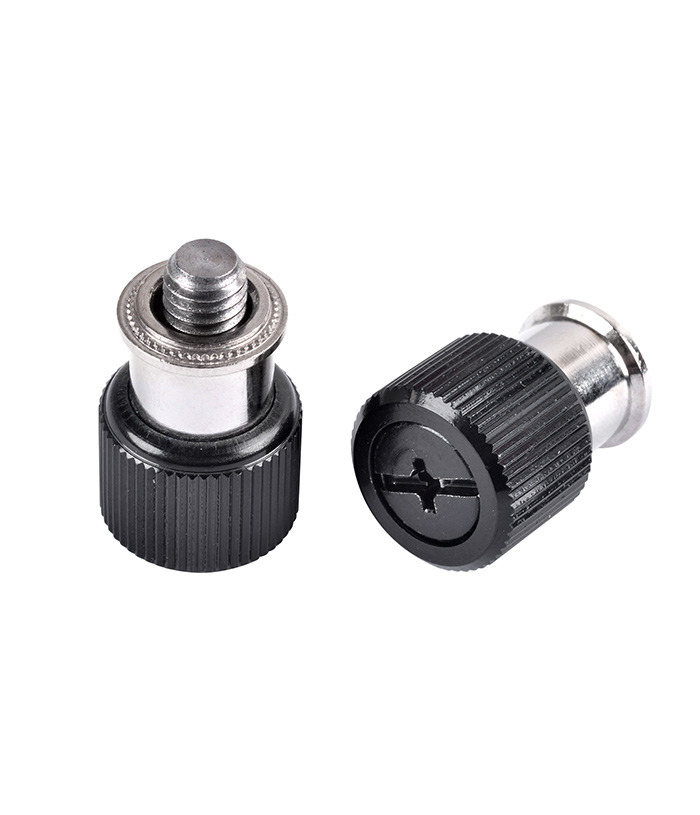

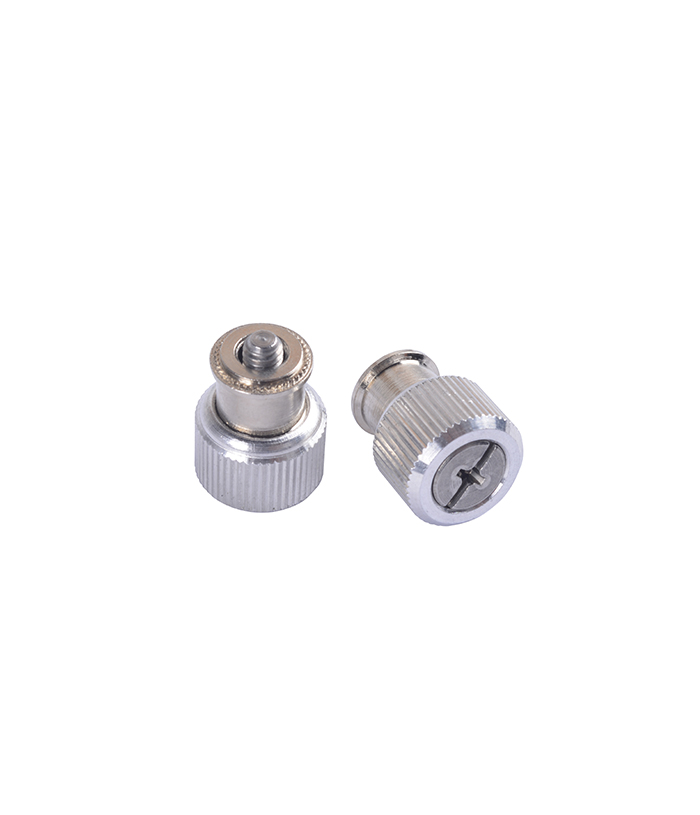

Self-clinching Type Spring Screws

These panel fasteners provide design flexibility by offering three styles of installation types,each having the same profile or look above the sheet or panel into which it is installed. The various mounting types include self-clinching,flare-mounted,and floating styles. Each offers a distinct advantage depending on your application. The standard selection of knobs include knurled or smooth metal caps and other plastic parts.

Key features include

1. Universal Phillips/slot drive(except for plastic cap).

2. Shoulder on retainer to provide positive stop during installation.

3. Anti cross-threading feature. Eases assembly, aligns components,improves assembly line productivity,prevents jamming,and slides through clogged internal threads.
